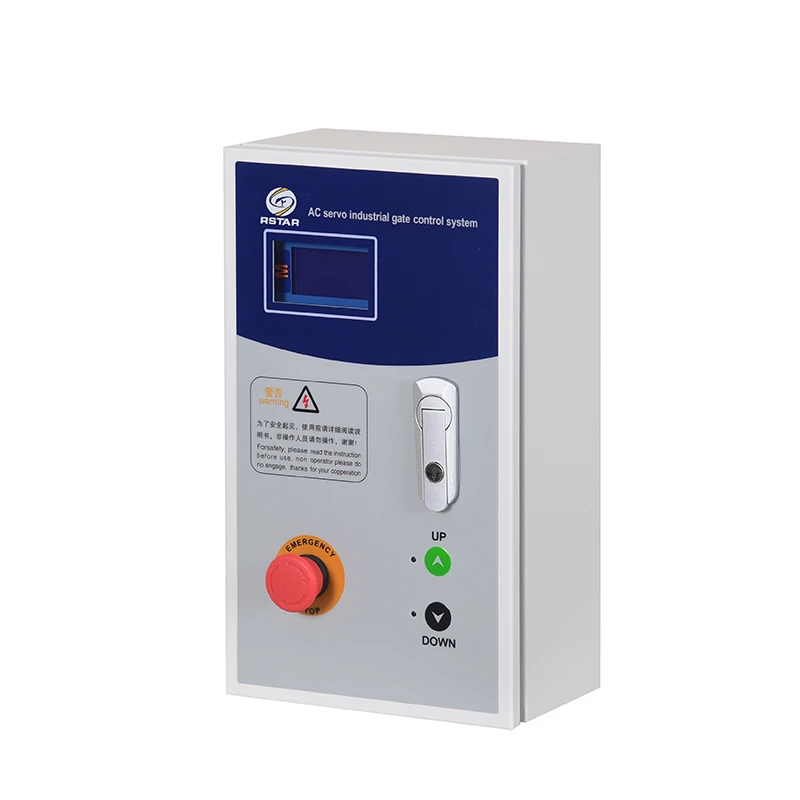

Servo High Speed Door Control Box

This Servo High Speed Door Control Box is developed by Wuxi Ruisida Electric. It is designed for high-frequency industrial door systems requiring fast response and enhanced safety performance.

The system adopts full servo closed-loop vector control technology to achieve precise speed, position, and torque regulation during high-speed operation cycles.

Compared with conventional VFD-based systems, servo control provides faster response, higher positioning accuracy, and improved mechanical stability under frequent start-stop conditions.

The system supports motors in the 500 W to 1600 W range at 220 V.

The control system integrates fast reverse response logic. When an obstruction is detected during door closing, the system immediately reverses direction to reduce collision risk and improve operational safety.

This function is especially suitable for environments where pedestrians and vehicles share the same passageway.

The servo system ensures smooth acceleration and deceleration, reducing mechanical impact and extending door system lifespan.

The control box includes a user-friendly LCD interface with simplified menu navigation and parameter configuration.

It supports power failure memory. Position data is retained during manual operation or power interruptions, eliminating the need for re-homing.

The system includes full protection functions:

1. Stall protection
2. Over-voltage protection
3. Over-temperature protection
4. Overload protection
5. Torque limitation control

The system supports interlock and linkage control, enabling coordinated operation between multiple doors in clean rooms or controlled access environments.

A standard RS485 communication interface with Modbus protocol is available for integration with automation systems.

Each unit undergoes full functional testing and aging verification before delivery to ensure stable industrial performance.

This control box is suitable for high-frequency fast doors, logistics passages, industrial entrances, and safety-critical access points where rapid response and human safety are required.

We provide a 3-year warranty for the complete unit and long-term technical support. For international customers, remote commissioning, troubleshooting, and integration support are available.

Samples can be provided for evaluation before bulk orders. Custom servo tuning and interface configuration are supported upon request.

This Servo High Speed Door Control Box delivers fast response, stable motion control, and enhanced safety performance for modern industrial door systems.
